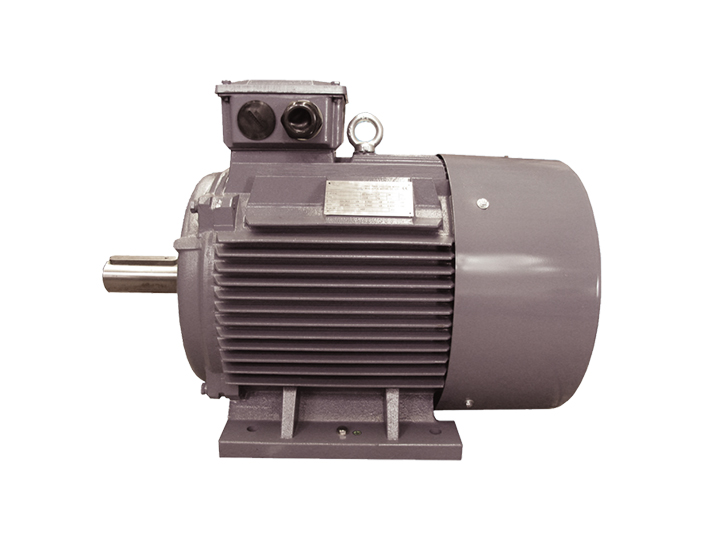

YD系列雙速三相異步電動機

產品技術特性產品的電氣性能數據產品的機械尺寸數據

雙速電機的工作原理是：電機的變速采用改變繞組的連接方式，也就是說用改變電機旋轉磁場的磁極對數來改變它的轉速。　　

雙速電機（風機），平時轉速低，有時風機就高速轉，主要是通過以下外部控制線路的切換來改變電機線圈的繞組連接方式來實現。　

1、在定子槽內嵌有兩個不同極對數的共有繞組，通過外部控制線路的切換來改變電機定子繞組的接法來實現磁極對數；　　

2、在定子槽內嵌有兩個不同極對數的獨立繞組；　　

3、在定子槽內嵌有兩個不同極對數的獨立繞組，而且每個繞組又可以有不同的聯接。

精進動力所生產的YD系列變極多速三相異步電動機是一般用途的全封閉自扇冷式鼠籠型電動機，是Y系列（IP44）三相異步電動機的派生系列之一。YD系列電動機的功率等級及功率等級與安裝尺寸的對應關系與國外同類產品相當，因此具有與國外同類型產品之間良好的互換性。

該產品與國內同類型其他系列電動機相比，具有體積小、重量輕、起動轉矩大、噪聲低、振動小、可靠性高等特點。防護等級為IP44，冷卻方式為IC0141。

該產品適用于機床、礦山、冶金、紡織、印染、化工、農機等行業需要有級變速的各種機械設備。

The working principle of the two-speed motor is that the speed change of the motor is changed by changing the connection mode of the winding, that is to say, the number of poles of the rotating magnetic field of the motor is changed to change its rotation speed.

Two-speed motor (fan), usually low speed, sometimes the fan rotates at high speed, mainly by changing the winding connection mode of the motor coil by switching the following external control lines.

1. Two common pole pairs of different pole pairs are embedded in the stator slot, and the connection of the stator windings of the motor is changed by the switching of the external control circuit to realize the magnetic pole pairs;

2. Two independent windings of different pole pairs are embedded in the stator slot;

3. Two independent windings of different pole pairs are embedded in the stator slot, and each winding can have different connections.

YD series variable pole multi-speed three-phase asynchronous motor produced by Jingjin Power is a general-purpose fully enclosed fan-cooled squirrel-cage motor, which is one of the derivative series of Y series (IP44) three-phase asynchronous motor. The corresponding relationship between the power level and power level of the YD series motor and the installation size is comparable to that of similar foreign products, so it has good interchangeability with the same type of products abroad.

Compared with other series of motors of the same type in China, this product has the characteristics of small size, light weight, large starting torque, low noise, low vibration and high reliability. The degree of protection is IP44 and the cooling method is IC0141.

This product is suitable for various mechanical equipments such as machine tools, mining, metallurgy, textile, printing and dyeing, chemical industry, agricultural machinery and other industries that need to have variable speed.

YD系列變極多速三相異步電動機是Y系列基礎上研制的新型變極多速三相異步電動機，具有效率高、起動轉矩大、噪聲低、振動小等優點。由于該系列電機可通過改變極改變電動機的轉速，從而達到功率的合理匹配并使變速系統得到簡化，因而在紡織、印染、化工等行業得到廣泛使用。

YD系列變極多速三相異步電動機在防護等級、使用條件、結構和安裝尺寸等方面與Y系列完全相同。其功率等級與安裝尺寸的對應關系與國外同類產品相當，因而具有與國內外產品的良好互換性，便于出口和用作進口設備的備用電機。YD系列變極多速三相異步電動機額定電壓為380V額定頻率為50Hz防護等級為IP44冷去口方法為IC411采用B級絕緣，該系列電動機的結構及安裝型式、外形尺寸與丫系列電動機相同。YD系列雙速電動機為單繞組，三速電動機為雙繞組。利用改變定子繞組的接法以改變電動機的極數，從而使電動機用一套或兩套繞組來獲得兩種或兩種以上的轉速。該系列電機產品符合《YD系列1P44變極多速三相異步電動機技術條件》由于該系列電機具有可隨負載性質的要求而分級地變換轉速，從而達到功率的合理匹配和簡化變速系統的特點。適用于需要逐級調速的各種傳動機構，主要應用于萬能、組合、專用切削機床及礦山冶金、紡織、印染、化工、農機等行業。

YD系列變極多速三相異步電動機有雙速，三速，四速等類型，采用單繞組變極方法實現轉速變化，用戶使用時只需選擇相應的接法，即可使電機以對應的轉速轉動。

本系列電機的外形與安裝尺寸同Y系列電機，主要技術指標達到IEC標準。具有體積小、重量輕、噪音低、啟動性能好、運行可靠、維護方便等特點。本系列電機廣泛應用于各類需要有級調速的機械設備，可降低整機噪音，節約能源、并使整機結構緊湊。

我公司可以根據用戶需求，設計生產特殊規格的變極多速電機，如YDT風機、泵類負載變極多速電機等。

本系列電機的使用條件同Y系列電機。

YD series variable pole multi-speed three-phase asynchronous motor is a new type of variable pole multi-speed three-phase asynchronous motor developed on the basis of Y series. It has the advantages of high efficiency, large starting torque, low noise and small vibration. Because this series of motors can change the speed of the motor by changing the pole, thus achieving reasonable matching of power and simplifying the shifting system, it is widely used in textile, printing and dyeing, chemical and other industries.

The YD series variable pole multi-speed three-phase asynchronous motor is identical to the Y series in terms of protection class, operating conditions, structure and installation dimensions. The corresponding relationship between the power level and the installation size is comparable to that of similar foreign products, so it has good interchangeability with domestic and foreign products, and is convenient for export and use as a backup motor for imported equipment. YD series variable pole multi-speed three-phase asynchronous motor rated voltage is 380V rated frequency is 50Hz protection grade is IP44 cold-cut method for IC411 using class B insulation, the structure and installation type and external dimensions of this series of motors are the same as those of 丫 series motors. The YD series two-speed motor is a single winding, and the three-speed motor is a double winding. By changing the connection of the stator windings to change the number of poles of the motor, the motor can be used with one or two sets of windings to obtain two or more speeds. This series of motor products meets the technical requirements of YD series 1P44 variable pole multi-speed three-phase asynchronous motor. Because this series of motors has the ability to change the speed stepwise according to the requirements of load characteristics, it can achieve reasonable matching of power and simplify the characteristics of the shifting system. It is suitable for various transmission mechanisms that require step-by-step speed regulation. It is mainly used in universal, combined, special cutting machine tools and mining metallurgy, textile, printing and dyeing, chemical, agricultural machinery and other industries.

YD series variable-pole multi-speed three-phase asynchronous motor has two-speed, three-speed, four-speed and other types. It adopts single-winding and variable-pole method to realize the change of speed. When users use it, they only need to select the corresponding connection method to make the motor correspond. The speed is rotated.

The shape and installation dimensions of this series of motors are the same as Y series motors, and the main technical indicators meet the IEC standards. It has the characteristics of small size, light weight, low noise, good starting performance, reliable operation and convenient maintenance. This series of motors is widely used in all kinds of mechanical equipment that requires step-speed regulation, which can reduce the noise of the whole machine, save energy and make the whole structure compact.

Our company can design and produce special-sized variable-pole multi-speed motors according to user requirements, such as YDT fans and pump-type variable-pole multi-speed motors.

This series of motors is used in the same condition as the Y series motors.

工作條件

環境溫度：-15℃≤tc≤40℃；

海拔：不超過1000米；

額定電壓：380V；

頻率：50HZ；

連接方式：4/2極和8/4極接法：Y/YY；6/4極和8/6極接法：Y/Y。

工作方式：S1（連續）

絕緣等級：F極；

防護等級：IP54

冷卻方式：IC411

注：若有特殊要求，可按客戶需要提供

Working conditions

Ambient temperature: -15 ° C ≤ tc ≤ 40 ° C;

Altitude: no more than 1000 meters;

Rated voltage: 380V;

Frequency: 50HZ;

Connection method: 4/2 pole and 8/4 pole connection: Y/YY; 6/4 pole and 8/6 pole connection: Y/Y.

Working mode: S1 (continuous)

Insulation class: F pole;

Protection level: IP54

Cooling method: IC411

Note: If you have special requirements, you can provide according to customer needs.

變極多速三相異步電動機技術數據

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD801-4/2	4	0.45	1400	1.4	66	0.74	△	6.5	1.5	1.8	79
YD801-4/2	2	0.55	2750	1.5	65	0.85	2Y	7	1.7	1.8	79
YD802-4/2	4	0.55	1410	1.7	68	0.74	△	6.5	1.6	1.8	79
YD802-4/2	2	0.75	2770	2.0	66	0.85	2Y	7	1.8	1.8	79
YD90S-4/2	4	0.85	1410	2.3	74	0.77	△	6.5	1.8	1.8	79
YD90S-4/2	2	1.1	2840	2.7	72	0.85	2Y	7	1.9	1.8	79
YD90L-4/2	4	1.3	1400	3.3	76	0.78	△	6.5	1.8	1.8	83
YD90L-4/2	2	1.8	2830	4.3	74	0.85	2Y	7	2	1.8	83
YD90S-6/4	6	0.65	920	2.3	64	0.68	△	6.5	1.6	1.8	75
YD90S-6/4	4	0.85	1420	2.3	70	0.79	2Y	7	1.4	1.8	75
YD90L-6/4	6	0.85	930	2.8	66	0.70	△	6	1.6	1.8	75
YD90L-6/4	4	1.1	1420	3.0	71	0.79	2Y	6.5	1.5	1.8	75
YD90L-8/4	8	0.45	670	1.9	58	0.63	△	5.5	1.6	1.8	75
YD90L-8/4	4	0.75	1400	1.8	72	0.87	2Y	6.5	1.4	1.8	75
YD90S-8/6	8	0.35	670	1.6	56	0.60	△	5	1.8	1.8	73
YD90S-8/6	6	0.45	930	1.4	70	0.72	2Y	6	2	1.8	73
YD90L-8/6	8	0.45	680	1.9	59	0.60	△	5	1.7	1.8	73
YD90L-8/6	6	0.65	920	1.9	71	0.73	2Y	6	1.8	1.8	73
YD100L1-4/2	4	2	1430	4.8	78	0.81	△	6.5	1.7	1.8	87
YD100L1-4/2	2	2.4	2850	5.6	76	0.86	2Y	7	1.9	1.8	87
YD100L2-4/2	4	2.4	1430	5.6	79	0.83	△	6.5	1.6	1.8	87
YD100L2-4/2	2	3	2850	6.6	77	0.89	2Y	7	1.7	1.8	87
YD100L1-6/4	6	1.3	940	3.8	74	0.70	△	6	1.7	1.8	78
YD100L1-6/4	4	1.8	1440	4.4	77	0.80	2Y	6.5	1.4	1.8	78
YD100L2-6/4	6	1.5	940	4.3	75	0.70	△	6	1.6	1.8	78
YD100L2-6/4	4	2.2	1430	5.4	77	0.80	2Y	6.5	1.4	1.8	78

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD100L-8/4	8	0.85	700	3.1	67	0.63	△	5.5	1.6	1.8	78
YD100L-8/4	4	1.5	1410	3.5	74	0.88	2Y	6.5	1.4	1.8	78
YD100L-8/6	8	0.75	710	2.9	65	0.60	△	5	1.8	1.8	73
YD100L-8/6	6	1.1	940	3.0	75	0.73	2Y	6	1.9	1.8	73
YD100L-6/4/2	6	0.75	950	2.6	67	0.65	△	5.5	1.8	1.8	87
	4	1.3	1450	3.7	72	0.75	2Y	6	1.6	1.8	87
	2	1.8	2900	4.5	71	0.85	△	7	1.6	1.8	87
YD112M-4/2	4	3.3	1440	7.4	82	0.83	2Y	6.5	1.9	1.8	87
YD112M-4/2	2	4	2890	8.6	79	0.89	△	7	2	1.8	87
YD112M-6/4	6	2.2	950	5.7	78	0.75	2Y	6	1.8	1.8	82
YD112M-6/4	4	2.8	1430	6.7	77	0.82	△	6.5	1.5	1.8	82
YD112M-8/4	8	1.5	700	5.0	72	0.63	2Y	5.5	1.7	1.8	82
YD112M-8/4	4	2.4	1420	5.0	78	0.88	△	6.5	1.7	1.8	82
YD112M-8/6	8	1.3	710	4.5	72	0.61	2Y	5	1.7	1.8	75
YD112M-8/6	6	1.8	940	4.8	78	0.73	△	6	1.9	1.8	75
YD112M-6/4/2	6	1.1	960	3.5	73	0.65	2Y	5.5	1.7	1.8	87
	4	2	1450	5.2	73	0.81	△	6	1.4	1.8	87
	2	2.4	2920	5.8	74	0.85	2Y	7	1.6	1.8	87
YD112M-8/4/2	8	0.65	690	2.7	59	0.63	△	4.5	1.4	1.8	87
	4	2	1450	5.2	73	0.81	2Y	6	1.3	1.8	87
	2	2.4	2920	5.8	74	0.85	△	7	1.2	1.8	87
YD112M-8/6/4	8	0.85	710	3.7	62	0.56	2Y	5.5	1.7	1.8	82
	6	1	950	3.1	68	0.73	△	6.5	1.3	1.8	82
	4	1.5	1430	3.5	75	0.86	2Y	7	1.5	1.8	82
YD132S-4/2	4	4.5	1450	9.8	83	0.84	△	6.5	1.7	1.8	91
YD132S-4/2	2	5.5	2870	11.9	79	0.89	2Y	7	1.8	1.8	91

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD132M-4/2	4	6.5	1450	13.8	84	0.85	△	6.5	1.7	1.8	91
YD132M-4/2	2	8	2880	17.0	80	0.89	2Y	7	1.8	1.8	91
YD132S-6/4	6	3	970	7.7	79	0.75.	△	6	1.8	1.8	82
YD132S-6/4	4	4	1440	9.5	78	0.82	2Y	6.5	1.7	1.8	82
YS132M-6/4	6	4	970	9.8	82	0.76	△	6	1.6	1.8	82
YS132M-6/4	4	5.5	1450	12.3	80	0.85	2Y	6.5	1.4	1.8	82
YD132S-8/4	8	2.2	720	7.0	75	0.64	△	5.5	1.5	1.8	82
YD132S-8/4	4	3.3	1440	7.1	80	0.88	2Y	6.5	1.7	1.8	82
YD132M-8/4	8	3	720	9.0	78	0.65	△	5.5	1.5	1.8	82
YD132M-8/4	4	4.5	1450	9.3	82	0.89	2Y	6.5	1.6	1.8	79
YD132S-8/6	8	1.8	720	5.7	76	0.62	△	5	1.6	1.8	79
YD132S-8/6	6	2.4	970	6.2	80	0.73	2Y	6	1.9	1.8	79
YD132M-8/6	8	2.6	720	8.2	78	0.62	△	5	1.9	1.8	79
YD132M-8/6	6	3.7	970	9.4	82	0.73	2Y	6	1.9	1.8	91
YD132S-6/4/2	6	1.8	970	5.1	75	0.71	Y	5.5	1.4	1.8	91
	4	2.6	1460	6.1	78	0.83	△	6	1.3	1.8	91
	2	3	2910	7.4	71	0.87	2Y	7	1.7	1.8	91
YD132SM1-6/4/2	6	2.2	970	6.0	77	0.72	Y	5.5	1.3	1.8	91
	4	3.3	1460	7.5	80	0.84	△	6	1.3	1.8	91
	2	4	2910	8.8	76	0.91	2Y	7	1.7	1.8	91
YD132M2-6/4/2	6	2.6	970	6.8	80	0.72	Y	5.5	1.5	1.8	91
	4	4	1460	9.0	80	0.84	△	6	1.4	1.8	91
	2	5	2920	10.8	71	0.91	2Y	7	1.7	1.8	91
YD132S-8/4/2	8	1	720	3.6	69	0.61	Y	4.5	1.4	1.8	91
	4	2.6	1460	6.1	78	0.83	△	6	1.2	1.8	91
	2	3	2910	7.1	74	0.87	2Y	7	1.4	1.8	91

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD132M-8/4/2	8	1.3	720	4.6	71	0.61	Y	4.5	1.5	1.8	91
	4	3.7	1460	8.4	80	0.84	△	6	1.3	1.8	91
	2	4.5	2910	10.0	75	0.91	2Y	7	1.4	1.8	91
YD132S-8/6/4	8	1.1	720	4.1	68	0.60	△	5.5	1.4	1.8	82
	6	1.5	970	4.2	74	0.73	2Y	6.5	1.3	1.8	82
	4	1.8	1450	4.0	78	0.87	Y	7	1.3	1.8	82
YD132M1-8/6/4	8	1.5	720	5.2	71	0.62	△	5.5	1.3	1.8	82
	6	2	970	5.4	77	0.73	2Y	6.5	1.5	1.8	82
	4	2.2	1460	4.9	79	0.87	Y	7	1.4	1.8	82
YD132M2-8/6/4	8	1.8	720	6.1	72	0.62	△	5.5	1.5	1.8	82
	6	2.6	970	6.8	78	0.74	2Y	6.5	1.7	1.8	82
	4	3	1460	6.5	80	0.87	Y	7	1.5	1.8	82
YD160M-4/2	4	9	1460	18.5	87	0.85	△	6.5	1.6	1.8	95
YD160M-4/2	2	11	2920	22.8	82	0.89	2Y	7	1.8	1.8	95
YD160L-4/2	4	11	1450	22.3	87	0.86	△	6.5	1.7	1.8	95
YD160L-4/2	2	14	2910	28.7	82	0.90	2Y	7	1.9	1.8	95
YD160M-6/4	6	6.5	970	15.1	84	0.78	△	6.5	1.5	1.8	86
YD160M-6/4	4	8	1450	17.4	83	0.84	2Y	6	1.5	1.8	86
YD160L-6/4	6	9	970	20.6	85	0.78	△	6.5	1.6	, 1.8	86
YD160L-6/4	4	, , , 11	1450	23.3	84	0.85	2Y	6	1.7	1.8	86
YD160M-8/4	8	5	970	13.9	83	0.66	△	5.5	1.5	1.8	86
YD160M-8/4	4	7.5	1450	15.2	84	0.89	2Y	6.5	1.6	1.8	86
YD160L-8/4	8	7	730	19	85	0.66	△	5.5	1.5	1.8	86
YD160L-8/4	4	11	1450	21.8	86	0.89	2Y	6.5	1.6	1.8	86
YD160M-8/6	8	4.5	730	13.3	83	0.62	△	5	1.6	1.8	83
YD160M-8/6	6	6	970	14.7	85	0.73	2Y	6	1.9	1.8	83

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD160L-8/6	8	6	730	17.5	84	0.62	△	5	1.6	1.8	83
YD160L-8/6	6	8	970	19.3	86	0.73	2Y	6	1.9	1.8	83
YD160M-12/6	12	2.6	480	11.6	74	0.46	△	4	1.2	1.8	79
YD160M-12/6	6	5	970	11.9	84	0.76	2Y	6	1.4	1.8	79
YD160L-12/6	12	3.7	480	16.1	76	0.46	△	4	1.2	1.8	83
YD160L-12/6	6	7	970	15.8	85	0.79	2Y	6	1.4	1.8	83
YD160M-6/4/2	6	3.7	970	9.5	82	0.72	Y	5.5	1.5	1.8	95
	4	5	1460	11.2	81	0.84	△	6	1.3	1.8	95
	2	6	2930	13.1	76	0.91	2Y	7	1.4	1.8	95
YD160L-6/4/2	6	4.5	970	11.4	83	0.72	Y	5.5	1.5	1.8	95
	4	7	1460	15.1	83	0.82	△	6	1.2	1.8	95
	2	9	2930	18.8	79	0.92	2Y	7	1.3	1.8	95
YD160M-8/4/2	8	2.2	730	7.53	75	0.59	Y	4.5	1.4	1.8	95
	4	5	1460	11.2	81	0.84	△	6	1.3	1.8	95
	2	6	2930	13.1	76	0.91	2Y	7	1.4	1.8	95
YD160L-8/4/2	8	2.8	730	9.18	77	0.60	Y	4.5	1.3	1.8	95
	4	7	1460	15.1	83	0.85	△	6	1.2	1.8	95
	2	9	2930	18.8	79	0.92	2Y	7	1.3	1.8	95
YD160M-8/6/4	8	3.3	730	10.2	79	0.62	△	5.5	1.7	1.8	86
	6	4	970	9.85	81	0.76	Y	6.5	1.4	1.8	86
	4	5.5	1450	11.5	83	0.87	2Y	7	1.5	1.8	86
YD160L-8/6/4	8	4.5	730	13.8	80	0.62	△	5.5	1.6	1.8	86
	6	6	970	14.4	83	0.76	Y	6.5	1.6	1.8	86
	4	7.5	1460	15.5	84	0.87	2Y	7	1.5	1.8	86

型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	堵轉電流	堵轉轉矩	最大轉矩	噪聲 dB (A)
型號	極數	額定功率 kW	轉速 r/min	電流 A	效率 %	功率因數 cosΦ	接法	額定電流	額定轉矩	額定轉矩	噪聲 dB (A)
YD160L-8/6	8	6	730	17.5	84	0.62	△	5	1.6	1.8	83
YD160L-8/6	6	8	970	19.3	86	0.73	2Y	6	1.9	1.8	83
YD160M-12/6	12	2.6	480	11.6	74	0.46	△	4	1.2	1.8	79
YD160M-12/6	6	5	970	11.9	84	0.76	2Y	6	1.4	1.8	79
YD160L-12/6	12	3.7	480	16.1	76	0.46	△	4	1.2	1.8	83
YD160L-12/6	6	7	970	15.8	85	0.79	2Y	6	1.4	1.8	83
YD160M-6/4/2	6	3.7	970	9.5	82	0.72	Y	5.5	1.5	1.8	95
	4	5	1460	11.2	81	0.84	△	6	1.3	1.8	95
	2	6	2930	13.1	76	0.91	2Y	7	1.4	1.8	95
YD160L-6/4/2	6	4.5	970	11.4	83	0.72	Y	5.5	1.5	1.8	95
	4	7	1460	15.1	83	0.82	△	6	1.2	1.8	95
	2	9	2930	18.8	79	0.92	2Y	7	1.3	1.8	95
YD160M-8/4/2	8	2.2	730	7.53	75	0.59	Y	4.5	1.4	1.8	95
	4	5	1460	11.2	81	0.84	△	6	1.3	1.8	95
	2	6	2930	13.1	76	0.91	2Y	7	1.4	1.8	95
YD160L-8/4/2	8	2.8	730	9.18	77	0.60	Y	4.5	1.3	1.8	95
	4	7	1460	15.1	83	0.85	△	6	1.2	1.8	95
	2	9	2930	18.8	79	0.92	2Y	7	1.3	1.8	95
YD160M-8/6/4	8	3.3	730	10.2	79	0.62	△	5.5	1.7	1.8	86
	6	4	970	9.85	81	0.76	Y	6.5	1.4	1.8	86
	4	5.5	1450	11.5	83	0.87	2Y	7	1.5	1.8	86
YD160L-8/6/4	8	4.5	730	13.8	80	0.62	△	5.5	1.6	1.8	86
	6	6	970	14.4	83	0.76	Y	6.5	1.6	1.8	86
	4	7.5	1460	15.5	84	0.87	2Y	7	1.5	1.8	86

YD系列變極多速三相異步電動機技術參數

YD 系列電機技術參數 380V/50Hz
電機型號	極數	額定功率	滿載時				額定轉矩	堵轉轉矩	最大轉矩	堵轉電流
		額定功率	轉速	電流	效率	功率因素	額定轉矩	額定轉矩	額定轉矩	額定電流
		KW	RPM	Amp	η%	Cosφ	N.m	Tst/Tn	Tmax/Tn	lst/ln
YD-80M1-4/2	4	0.45	1420	1.40	66.0	0.74	3.03	1.5	1.8	6.5
YD-80M1-4/2	2	0.55	2840	1.51	65.0	0.85	1.85	1.7	1.8	7.0
YD-80M2-4/2	4	0.55	1420	1.66	68.0	0.74	3.70	1.6	1.8	6.5
YD-80M2-4/2	2	0.75	2840	2.03	66.0	0.85	2.52	1.8	1.8	7.0
YD-90S-4/2	4	0.85	1430	2.27	74.0	0.77	5.68	1.8	1.8	6.5
YD-90S-4/2	2	1.1	2850	2.77	71.0	0.85	3.69	1.9	1.8	7.0
YD-90L-4/2	4	1.3	1430	3.33	76.0	0.78	8.68	1.8	1.8	6.5
YD-90L-4/2	2	1.8	2850	4.41	73.0	0.85	6.03	2.0	1.8	7.0
YD-100L1-4/2	4	2.0	1430	4.81	78.0	0.81	13.40	1.7	1.8	6.5
YD-100L1-4/2	2	2.4	2850	5.58	76.0	0.86	8.04	1.9	1.8	7.0
YD-100L2-4/2	4	2.4	1430	5.56	79.0	0.83	16.00	1.6	1.8	6.5
YD-100L2-4/2	2	3	2850	6.65	77.0	0.89	10.10	1.7	1.8	7.0
YD-112M-4/2	4	3.3	1450	7.37	82.0	0.83	21.70	1.9	1.8	6.5
YD-112M-4/2	2	4	2880	8.64	79.0	0.89	13.30	2.0	1.8	7.0
YD-132S-4/2	4	4.5	1450	9.81	83.0	0.84	29.60	1.7	1.8	6.5
YD-132S-4/2	2	5.5	2880	11.90	79.0	0.89	18.20	1.8	1.8	7.0
YD-132M-4/2	4	6.5	1450	13.80	84.0	0.85	42.80	1.7	1.8	6.5
YD-132M-4/2	2	8	2880	17.10	80.0	0.89	26.50	1.8	1.8	7.0
YD-160M-4/2	4	9.0	1460	18.50	87.0	0.85	58.90	1.6	1.8	6.5
YD-160M-4/2	2	11.0	2920	22.90	82.0	0.89	36.00	1.8	1.8	7.0
YD-160L-4/2	4	11.0	1460	22.30	87.0	0.86	72.00	1.7	1.8	6.5
YD-160L-4/2	2	14	2920	28.80	82.0	0.90	45.80	1.9	1.8	7.0
YD-180M-4/2	4	15	1470	29.40	89.0	0.87	97.40	1.8	1.8	6.5
YD-180M-4/2	2	18.5	2940	36.70	85.0	0.90	60.10	1.9	1.8	7.0
YD-180L-4/2	4	18.5	1470	35.90	89.0	0.88	120.20	1.6	1.8	6.5
YD-180L-4/2	2	22	2940	42.70	86.0	0.91	71.50	1.8	1.8	7.0
YD-90S-6/4	4	26	1470	49.90	89.0	0.89	168.90	1.4	1.8	6.0
YD-90S-6/4	2	30	2940	58.30	85.0	0.92	97.45	1.6	1.8	6.5
YD-90L-6/4	6	0.65	920	2.27	64.0	0.68	6.75	1.6	1.8	6.0
YD-90L-6/4	4	0.85	1400	2.34	70.0	0.79	5.80	1.4	1.8	6.5
YD-90L-6/4	6	0.9	930	2.80	66.0	0.70	8.73	1.6	1.8	6.0
YD-90L-6/4	4	1.1	1400	2.98	71.0	0.79	7.50	1.5	1.8	6.5
YD-100L1-6/4	6	1.3	940	3.81	74.0	0.70	13.20	1.7	1.8	6.0
YD-100L1-6/4	4	1.8	144	4.44	77.0	0.80	11.90	1.4	1.8	6.5
YD-100L2-6/4	6	1.5	940	4.34	75.0	0.70	15.20	1.6	1.8	6.0
YD-100L2-6/4	4	2.2	1440	5.43	77.0	0.80	14.60	1.4	1.8	6.5
YD-112M-6/4	6	2.2	960	5.71	78.0	0.75	21.90	1.8	1.8	6.0
YD-112M-6/4	4	2.8	1450	6.74	77.0	0.82	18.40	1.5	1.8	6.5
YD-132S-6/4	6	3	970	7.69	79.0	0.75	29.50	1.8	1.8	6.0
YD-132S-6/4	4	4	1450	9.50	8.0	0.82	26.30	1.7	1.8	6.5
YD-132M-6/4	6	4	970	9.75	82.0	0.76	39.40	1.6	1.8	6.0
YD-132M-6/4	4	5.5	1450	12.30	80.0	0.85	36.20	1.4	1.8	6.5
YD-160M-6/4	6	6.5	970	15.10	84.0	0.78	64.00	1.5	1.8	6.0
YD-160M-6/4	4	8.0	1460	17.60	82.0	0.84	52.30	1.5	1.8	6.5
YD-160L-6/4	6	9.0	970	20.60	85.0	0.78	88.60	1.6	1.8	6.0
YD-160L-6/4	4	11	1460	23.70	83.0	0.85	72.00	1.7	1.8	6.5
YD-180M-6/4	6	11	980	25.90	85.0	0.76	107.20	1.6	1.8	6.0
YD-180M-6/4	4	14	1470	29.80	84.0	0.85	91.00	1.7	1.8	6.5
YD-180L-6/4	6	13.0	980	29.40	86.0	0.78	126.70	1.7	1.8	6.0
YD-180L-6/4	4	16	1470	33.60	85.0	0.85	103.90	1.7	1.8	6.5
YD-200L-6/4	6	18.5	980	41.40	87.0	0.78	180.30	1.6	1.8	6.5
YD-200L-6/4	4	22	1470	44.90	86.5	0.86	142.90	1.5	1.8	7.0
YD-90L-8/4	8	0.5	700	1.87	58.0	0.63	6.14	1.6	1.8	5.5
YD-90L-8/4	4	0.75	1400	1.82	72.0	0.87	5.12	1.4	1.8	6.5
YD-100L-8/4	8	0.85	700	3.06	67.0	0.63	11.60	1.6	1.8	5.5
YD-100L-8/4	4	1.5	1410	3.50	74.0	0.88	10.20	1.4	1.8	6.5
YD-112M-8/4	8	1.5	700	5.02	72.0	0.63	20.50	1.7	1.8	5.5
YD-112M-8/4	4	2.4	1410	5.31	78.0	0.88	16.30	1.7	1.8	6.5
YD-132S-8/4	8	2.2	720	6.96	75.0	0.64	29.20	1.5	1.8	5.5
YD-132S-8/4	4	3.3	1440	7.12	80.0	0.88	21.90	1.7	1.8	6.5
YD-132M-8/4	8	3.0	720	8.99	78.0	0.65	39.80	1.5	1.8	5.5
YD-132M-8/4	4	4.5	1440	9.37	82.0	0.89	29.80	1.6	1.8	6.5
YD-160M-8/4	8	5	730	13.90	83.0	0.66	65.40	1.5	1.8	5.5
YD-160M-8/4	4	7.5	1450	15.20	84.0	0.89	39.40	1.6	1.8	6.5
YD-160L-8/4	8	7.0	730	19.00	85.0	0.66	91.60	1.5	1.8	5.5
YD-160L-8/4	4	11	1450	21.80	86.0	0.89	72.40	1.6	1.8	6.5
YD-180L-8/4	8	11	730	26.70	87.0	0.72	143.90	1.5	1.8	6.0
YD-180L-8/4	4	17	1460	32.30	88.0	0.91	111.20	1.5	1.8	7.0
YD-200L1-8/4	8	14.0	730	33.00	87.0	0.74	183.20	1.8	1.8	6.0
YD-200L1-8/4	4	22	1460	41.30	88.0	0.92	143.90	1.7	1.8	7.0
YD-200L2-8/4	8	17	730	40.10	87.0	0.74	222.40	1.5	1.8	6.0
YD-200L2-8/4	4	26	1460	48.80	88.0	0.92	170.10	1.7	1.8	7.0
YD-90S-8/6	8	0.35	700	1.58	56.0	0.60	4.78	1.8	1.8	5.0
YD-90S-8/6	4	0.45	930	1.36	70.0	0.72	4.62	2.0	1.8	6.0
YD-90L-8/6	8	0.45	700	1.93	59.0	0.60	6.14	1.7	1.8	5.0
YD-90L-8/6	6	0.65	930	1.91	71.0	0.73	6.67	1.8	1.8	6.0
YD-100L-8/6	8	0.75	710	2.92	65.0	0.60	10.10	1.8	1.8	5.0
YD-100L-8/6	6	1.1	950	3.05	75.0	0.73	11.10	1.9	1.8	6.0
YD-112M-8/6	8	1.3	710	4.50	72.0	0.61	17.50	1.7	1.8	5.0
YD-112M-8/6	6	1.8	950	4.80	78.0	0.73	18.10	1.9	1.8	6.0
YD-132S-8/6	8	1.8	730	5.80	76.0	0.62	23.50	1.6	1.8	5.0
YD-132S-8/6	6	2.4	970	6.24	80.0	0.73	23.60	1.9	1.8	6.0
YD-132M-8/6	8	2.6	730	8.17	78.0	0.62	34.00	1.9	1.8	5.0
YD-132M-8/6	6	3.7	970	9.39	82.0	0.73	36.40	1.9	1.8	6.0
YD-160M-8/6	8	4.5	730	13.30	83.0	0.62	58.90	1.6	1.8	5.0
YD-160M-8/6	6	6.0	980	14.70	85.0	0.73	58.50	1.9	1.8	6.0
YD-160L-8/6	8	6.0	730	17.50	84.0	0.62	78.50	1.6	1.8	5.0
YD-160L-8/6	6	8.0	980	19.40	86.0	0.73	78.00	1.9	1.8	6.0
YD-180M-8/6	8	7.5	730	21.90	84.0	0.62	98.10	1.9	1.8	5.0
YD-180M-8/6	6	10.0	980	21.20	86.0	0.73	97.40	1.9	1.8	6.0
YD-180L-8/6	8	9	730	24.80	85.0	0.65	117.70	1.8	1.8	5.0
YD-180L-8/6	6	12	980	28.30	86.0	0.75	116.90	1.8	1.8	6.0
YD-200L1-8/6	8	12.0	730	32.60	86.0	0.65	157.00	1.8	1.8	5.0
YD-200L1-8/6	6	17	980	39.10	87.0	0.76	165.70	2.0	1.8	6.0
YD-200L2-8/6	8	15	730	40.30	87.0	0.65	196.20	1.8	1.8	5.0
YD-200L2-8/6	6	20	980	45.40	88.0	0.76	194.90	2.0	1.8	6.0

上一篇：Y2EJ系列制動三相異步電動機

下一篇：船用電機

Related Products

相關產品

YD系列雙速三相異步電動機
